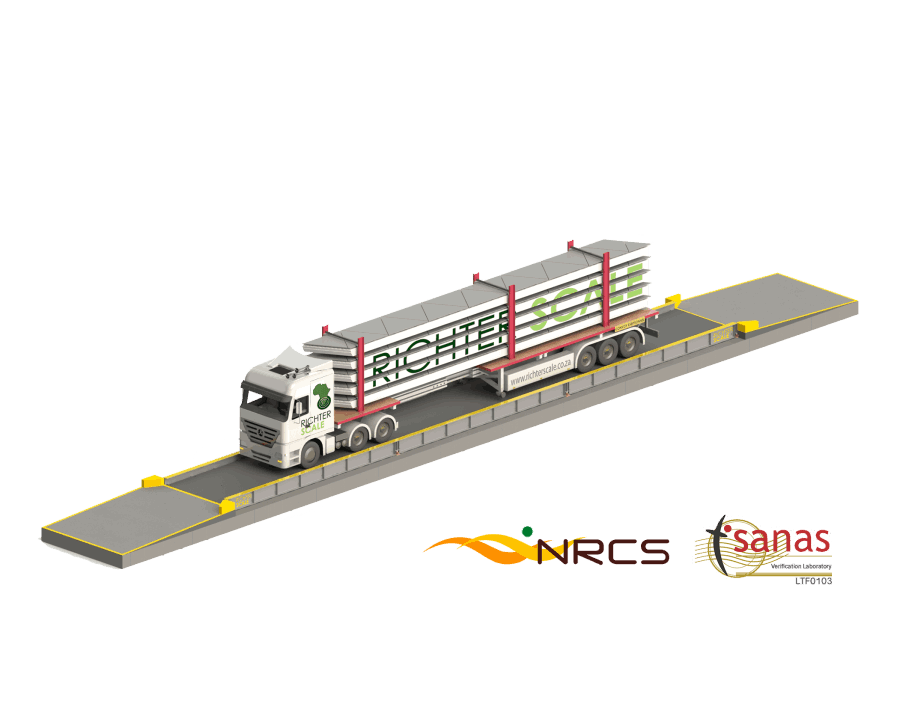

Watch to learn more details on the Infinity Heavy Duty Weighbridge.
A brief overview of our Infinity series weighbridge.
Highest KG/meter steel content weighbridge on the market today = Guaranteed peace of mind, unmatched strength, accuracy and return on investment.
Richter Scale prides itself in offering complete turn key packages with no sub contractors used. The Infinity Series Weighbridge has proven itself in some of the harshest operating environments and markets for over 45 years.
If you are looking for a weighbridge that will perform for decades to come then the Infinity Series is the long term choice and the prefference of many project managers and business owners where light duty or imported entry level weighbridges will not stand up to the task.
Available in a painted finish or optional extra - fully hot dipped galvanised protection for corrosive or coastal sites.
3m x 3m - 30 / 40 ton x 10kg
4.5m x 3m - 30 / 40 ton x 10kg
6.5m x 3m - 30 / 40 ton x 10kg
9m x 3m - 30 / 40 / 60 ton x 10 / 20kg
13m x 3m - 40 / 50 / 60 ton x 10 / 20kg
15.5m x 3m - 40 / 50 / 60 ton x 10 / 20kg
18m x 3m - 60 / *80 ton x 10 / 20kg
22m x 3m - 60 / *80 / *100 / *120 / *150 ton x 10 / 20 / 50 kg
24.5m x 3m - 60 / *80 / *100 / *120 / *150 ton x 10 / 20 / 50 kg
Capacity* Please include your country of operation and environment in your enquiry. Our sales experts will advise you any market restrictions and recommendations. South Africa : Legal for Trade applications limited to 60t max capacity. >60t available on application with NRCS Legal Metrology Type Approval Dept.
The Infinity Series Heavy Duty Weighbridges are recommended for high traffic or demanding sites and business types such as: Heavy Industrial, Mining and Related Services, Heavy Transport, Industrial Users, high volume agricultural, Large Scrap yard and Recycling Clients, Bulk Manufacturing, Landfill Sites to name a few.
Built to last. A proven design that has stood the test of time. Built for Africa by Africans to world class standards.
NRCS type approved in a wide range of sizes and capacities.
Optional extras such as booms / traffic lights / bolt down steel ramps / card readers / cameras / UPS backup / container weigh cabins and more.
Print Descriptive Weighbridge Tickets For Invoicing. Extensive Reporting Module.
We are an NRCS and SANAS accredited Verification body and Repair body under the Legal Metrology Act and Legal Metrology Regulations. Our products are type approved for trade use / prescribed purpose and thus carry the NRCS stamp of quality and excellence, giving you the confidence that you will get a product that meets a standard of quality and reliability which is traceable to international metrology and quality standards.
We have manufactured and continue to manufacture our weighbridges since 1972.
A pit / semi pit mount option is available for sites that are restricted with space. Pit depth of ± 1.3-1.5m deep ensures a generous clearance for easy operation and maintenance. 12mm deck plates with multiple inspection hatches make for easy access. The pit is finished with 60mm angle iron painted in yellow to assist the driver driving on and off the Infinity Pit Mount weighbridge. A sump and pump or gravity drainage is highly recomended to remove water build up quickly and effectively. NRCS Type Approved in South Africa for trade use/prescribed purpose.
